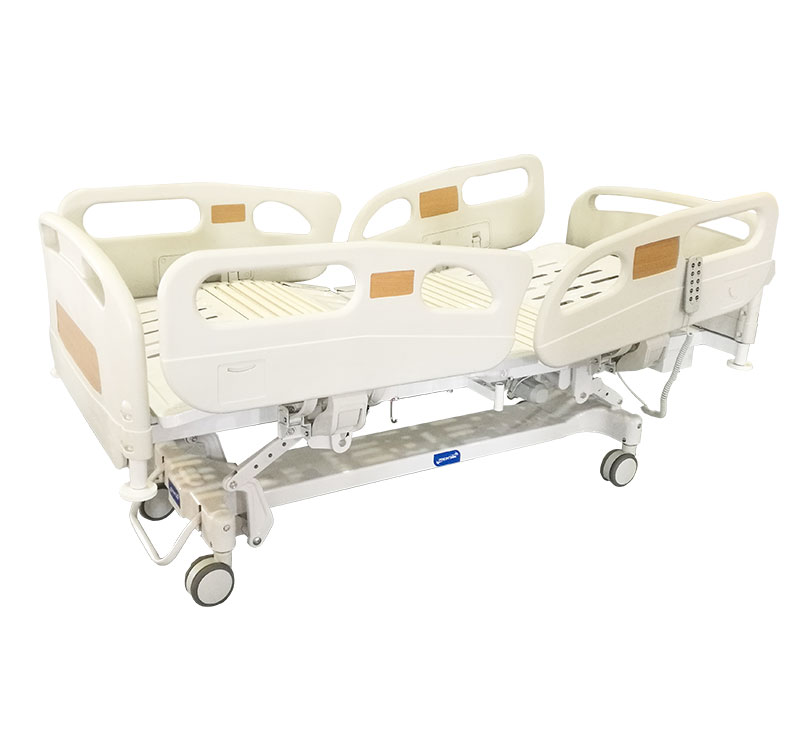

Model:YA-D5-11
Overall Size:2200*1060*480-750mm
Safe Working Load: 225kg
Functions:Back secticn adjustable,Foot secticn adjustable,High-low,Trendelenburg
,Reverse trendelenburg
Features:
Four split side rail,drop down
Hand remote control
Detachable head/foot board with easy lock
Central brake system with wheel diameter of 125mm
Bumper caster on four corners
Auto-counter to provide the patient from sliding onto foot end
ABS articulated soft joint for the platform
With angle indicator embeded in the railing for back and trendenleburg adjustment(optional)
Manual CPR on both sides(optional)
Incorporated railing control(optional)
Technical features:
| Technical parameters | |
| Model | YA-D5-11 |
| Size | 2200*1060*480-750mm |
| Recommended mattress size | 1950*900mm |
| High-Low: | 480-750mm |
| Back secticn adjustable | 0° to 75° |
| Knee secticn adjustable | 0° to 40° |
| Trendelenburg | 0° to 12° |
| Reverse trendelenburg | 0° to 12° |
| Safe working load | 225kg |
| Specification | |
| Bed Frame | Electrophoresis and powder coating |
| Bed platform | MS perforated platform with ventilation holes and ABS soft connection between section joints, molded forming |
| Motor | Quiet and robust electric actuators provide reliable operation |
| Build-in controller can control all electrically operated functions and movements | |
| Handrails | Four split side rail,drop down |
| Head and Foot board | ABS material, detachable |
| Castors: | Central brake system with wheel diameter of 125mm |
| Controller | Hand remote control |
| Patient control inner constructed in side rails | |
| Bumper castors | Bumper castors on 4 corners of bed |
| Angle indicator | With angle indicator embeded in the railing for back and trendenleburg adjustment(optional) |
| Special Features | |
| Auto-counter function | Auto-counter to provide the patient from sliding onto foot end |
| Mechanical CPR function | Control by the CPR handles on both sides of bed to realize the CPR procedure in one step |
| Standard Accessories: | |
| Head/Foot Board | 2 pieces |
| Side Rails | 4 pieces |
| Bed Frame | 1 set |
| Bed Boards | 5 pieces |
| Casters | 4 pieces |
| IV Pole Holder | 4 pieces |
| IV Pole | 1 piece |
| Drainage Bag Holders | 2 pieces |
