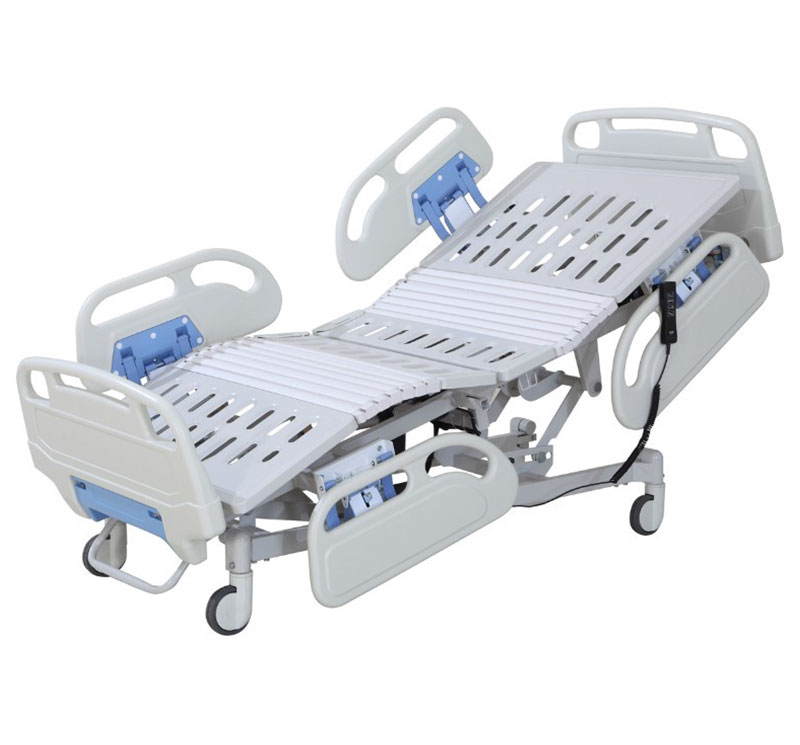

Model: YA-D5-9
Overall Size: 2160*1050 *450-700mm
Safe Working Load: 205kg
Funtions: Back secticn adjustable, Knee secticn adjustable,High-Low,Trendelenburg,Revere- Trendelenburg
Main features
Four split side rail,drop down under the bed platform
Hand remote control
Detachable head/foot board with easy lock
With articulated ABS soft joint between different platform sections
Central brake system with wheel diameter of 125mm
Auto-counter to provide the patient from sliding onto foot end
Manual CPR on both sides(optional)
Accessories
IV stand
Urine bag hook
Hand remote controller
ABS soft joint
Options
Nurse controller
5th direction wheel
Manual CPR
Mattress
Technical parameter
Overall size | 2160*1050 *450-700mm |
Lying size | 1910*900 mm |
Back section up/down | 0-75° |
Foot section up/down | 0-40° |
Height adjustment | 450-700mm |
Trendeleburg | 0-12° |
Revere- Trendelenburg | 0-12° |
Safe loading capacity | 205kg |
