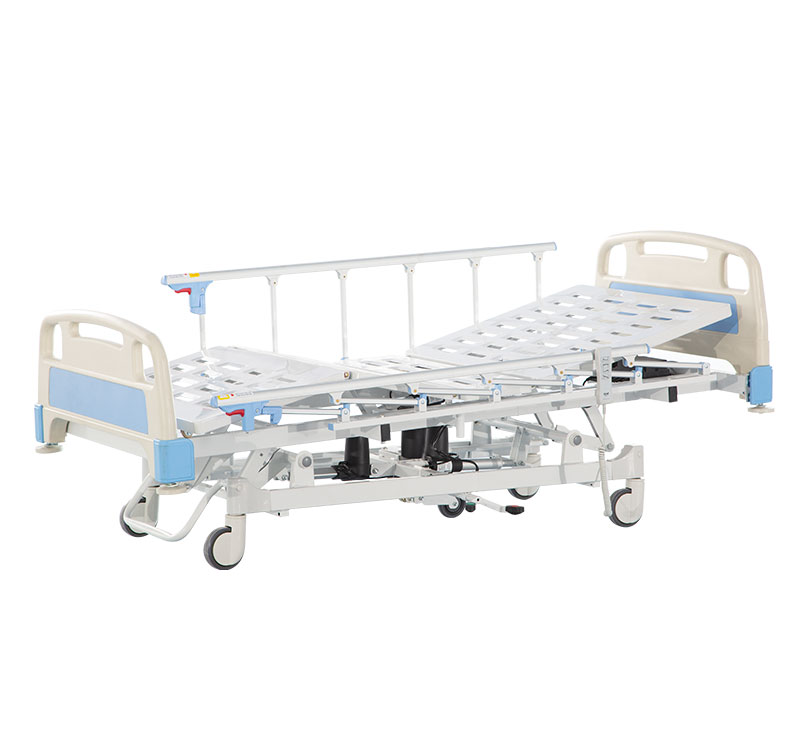

Model:YA-D5-8
Overall Size:2130*970*500-780mm
Safe Working Load: 195kg
Functions:Back secticn adjustable,Foot secticn adjustable,High-low,Trendelenburg
,Anti-trendeleburg
Features:
Collapsible aluninum railing with 6 bars
Hand remote control
Detachable head/foot board with easy lock
Central brake system with wheel diameter of 125mm
Bumper caster on four corners
Auto-counter to provide the patient from sliding onto foot end
Technical features:
| Technical parameters | |
| Model | YA-D5-8 |
| Size | 2130*970*500-780mm |
| Lying surface: | 1880*830mm |
| High-Low: | 500-780mm |
| Back secticn adjustable | 0° to 75° |
| Knee secticn adjustable | 0° to 40° |
| Trendeleburg | 0～12° |
| Anti-trendeleburg | 0～12° |
| Safe working load | 195kg |
| Specification | |
| Bed Frame | Electrophoresis and powder coating |
| Bed platform | MS perforated platform with ventilation hole, molded |
| Motor | Quiet and robust electric actuators provide reliable operation |
| Hand remote controller of all electrically operated functions and movements | |
| Handrails | Collapsible aluninum railing with 6 bars |
| Head and Foot board | ABS material, detachable |
| Castors: | Central brake system with wheel diameter of 125mm |
| With 5th wheel for direction | |
| Bumper castors | Bumper castors on 4 corners of bed |
| Special Features | |
| Auto-counter function | Auto-counter to provide the patient from sliding onto foot end |
| Standard Accessories | |
| Head/Foot Board | 2 pieces |
| Side Rails | 2 pieces |
| Bed Frame | 1 set |
| Bed Boards | 4 pieces |
| Casters | 5 pieces |
| IV Pole Holder | 4 pieces |
| IV Pole | 1 piece |
| Drainage Bag Holders | 2 pieces |
